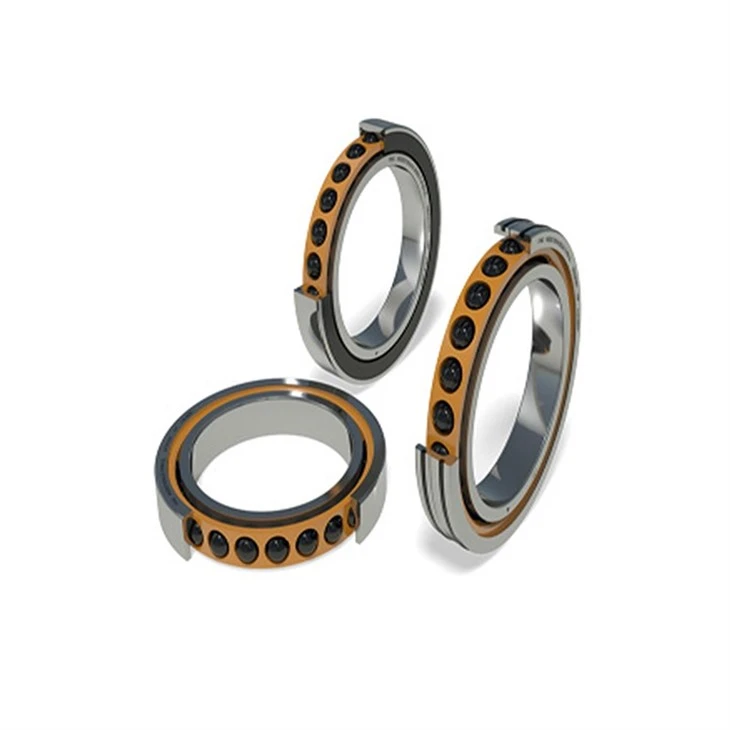

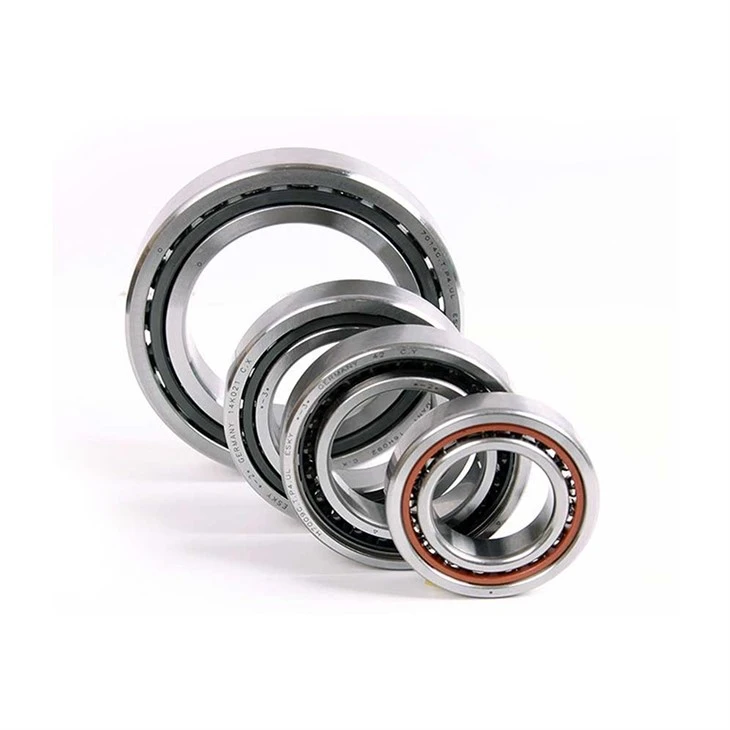

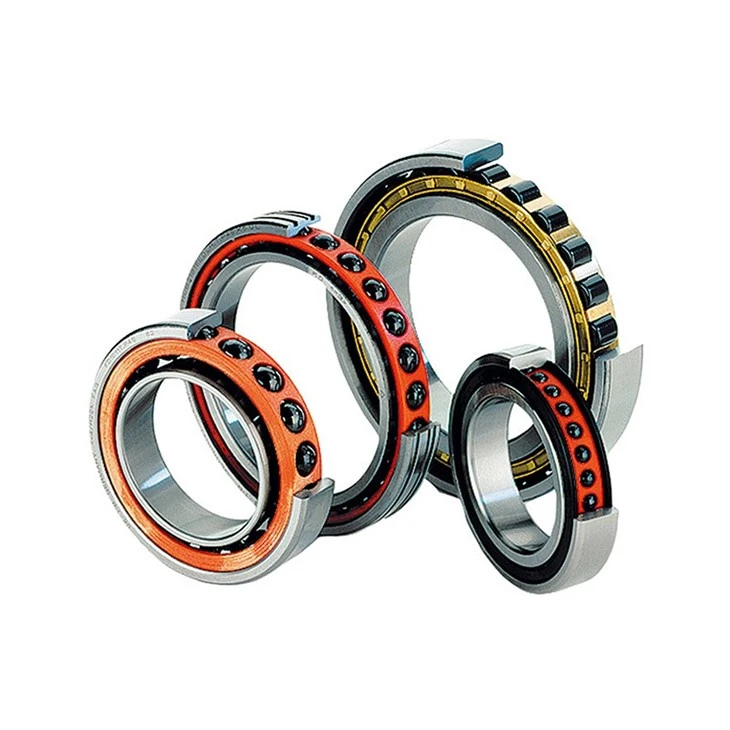

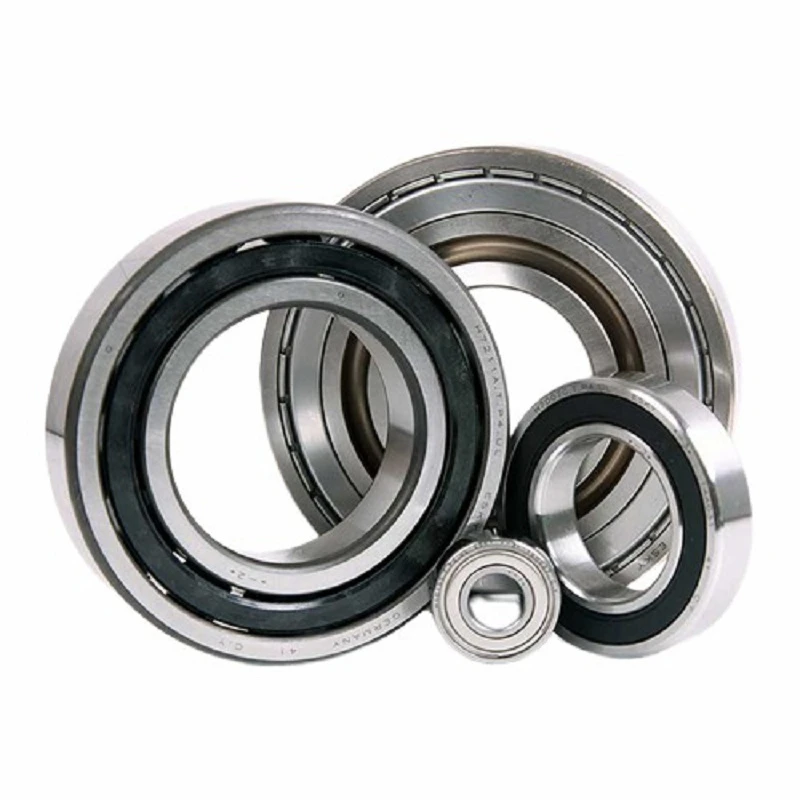

Spindle bearings for FAG is a specially designed single-row angular contact bearing. Its contact angle, tolerance and cage structure are different from ordinary bearings. FAG spindle bearing is especially used in situations that require extremely high guidance accuracy and high speed. The main application area of this type of bearing is machine tool spindles.

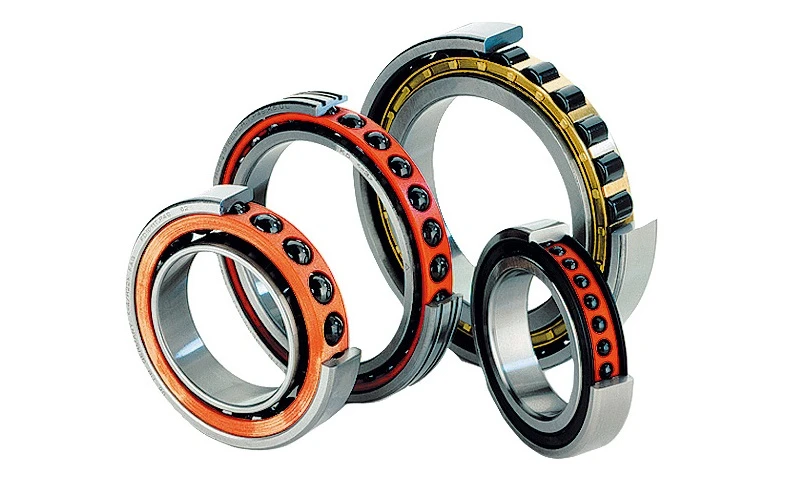

For many years, FAG has been offering spindle bearings of the B719, B70 and B72 series equipped with steel balls. The size of the balls of HCB719, HCB70 and HCB72 series ceramic hybrid spindle bearings is the same as the above series, and the material is ceramic.
The steel balls and ceramic balls of HS719 and HS70 series high-speed FAG spindle bearings, as well as HC719 and HC70 series ceramic hybrid spindle bearings are smaller. They are suitable for situations with low friction, low heat generation, low lubrication pressure and higher speeds. Their The working life is also longer.
Ceramic hybrid spindle bearings HSS719 and HSS70 series sealed high-speed bearings are as good as the HCS719 and HCS70 series and have very significant economy. This kind of bearing adopts double-sided non-contact sealing. The bearing is delivered with grease and requires no maintenance.
Spindle bearings for FAG ordinary structure
Spindle bearings of ordinary structure have the suffixes C.T.P4S and E.T.P4S. Among them, C represents the contact angle of 15°, E represents the contact angle of 25 degrees, T represents the solid window cage of phenolic resin material, and P4S represents the tolerance level.
Spindle bearings for FAG general structure
FAG spindle bearings with a universal structure are used for X-shaped, O-shaped or tandem arrangements in pairs or for group installation of several bearings. A pair of bearings of UL type universal structure, which are lightly preloaded before O-type or X-type installation. A tight fit will increase the preload of the bearing pair. When ordering bearings of universal construction, please give the number of individual bearings, not the number of bearing pairs and bearing groups.
INA FAG machine tool spindle bearing model
B7006C.T.P4S.UL, B7006E.T.P4S.UL, B7007C.T.P4S.UL, B7015E.T.P4S.UL B7013E.T.P4S.UL, B7014C.T.P4S .UL, B7014E.T.P4S.UL, B7007E.T.P4S.UL B7008C.T.P4S.UL, B7008E.T.P4S.UL, B7009C.T.P4S.UL, B7009E.T.P4S.UL B7010C .T.P4S.UL, B7010E.T.P4S.UL, B7011C.T.P4S.UL, B7011E.T.P4S.UL B7012C.T.P4S.UL, B7012E.T.P4S.UL, B7013C.T. P4S.UL, B7015C.T.P4S.UL B7016C.T.P4S.UL, B7016E.T.P4S.UL B7018C.T.P4S.UL, B7018E.T.P4S.ULFAG HSS7015C.T.P4S.UL, FAG HSS7015E.T.P4S.UL, FAG HS7015C.T.P4S.UL, FAG HS7015C.T.P4S.DBL, FAG HCS7015C.T.P4S.UL, FAG 234420M.S FAG B7015C.T.P4S.UL (TBTL, QBCM) FAG B7015E.T.P4S.UL FAG HSS7015C.T.P4S.UL FAG HSS7015E.T.P4S.UL FAG HS7015C.T.P4S.UL FAG HS7015C.T.P4S.DBL FAG HCS7015C.T.P4S.UL FAG 234420M.SP
